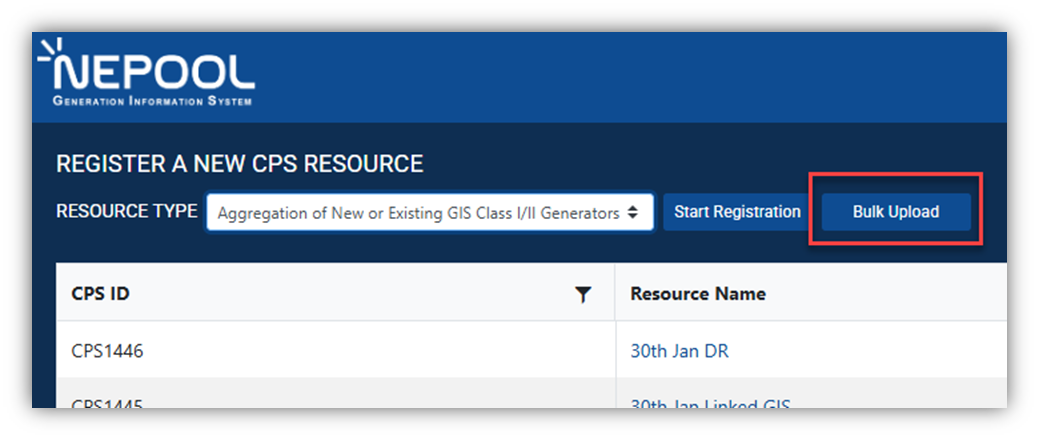

The NEPOOL-GIS Registry gives users the ability to upload a CSV file to register a set of CPS Resources. The file upload feature is available on the CPS Resources page where users currently register projects one-by-one through the interface. Once selecting a Resource Type, the File Upload button will be enabled:

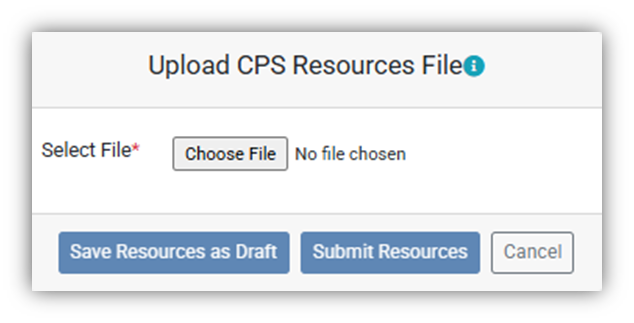

Clicking on the button will open a pop up to select a file. The user has the options to ‘Save the Resources as Draft’, or ‘Submit Resources’ for administrator approval:
The columns required in the CSV file depend on the Resource Type selected. The table below indicates which columns are required for each Resource Type:
Resource Type |
resourceName |
resourceGisId |
technology |
aggregated |
cpsProtocol |
country |
addressLine1 |
addressLine2 |
City |
State |
ZipCode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| New or Existing GIS Class I/II Generator Resource | X | X | X | X | X | X | X | X(optional) | X | X | X |
| Aggregation of New or Existing GIS Class I/II Generators Resource | X | X | X | ||||||||
| Qualified Storage Linked to GIS Generator | X | X | X | X | X | X | X(optional) | X | X | X | |
| Qualified Storage or Demand Response Resource | X | X | X | X | X | X | X(optional) | X | X | X |
Column definitions:
| Column name | Data type | Description |
| resourceName | string | Name of the new CPS Resource |
| resourceGisId | string | NEPOOL-GIS ID of the resource being linked to the CPS resource |
| technology | string | Code for the technology of the resource: ENERGYSTORAGE DEMANDRESPONSE BIOGAS BIOMASS WASTEENERGY FUELCELL HYDROPOWER SOLAR WIND |
| aggregated | boolean | Indicates if the resource is aggregated (true/false) |
| cpsProtocol | string |
Code for the CPS Resource Protocol: NEWRES - CPS New Renewable Resource EXISTLINK - CPS Existing Resource Linked to Storage QALSTOR - CPS Qualified Energy Storage DEMRES - CPS Demand Response |
| country | string | Country code. 'US' |
| addressLine1 | string | First line of address |
| addressLine2 | string | Second line of address (optional) |
| city | string | Name of city |
| state | string | Two-letter state code |
| zipCode | string | Zip Code |
